Hydraulic Coil Decoiler 20-25-30 Tons

Product Code(s) : RMH20000H | RMH25000H | RMH30000H

Forming Line manufactures hydraulic decoilers with a coil carrying and decoiling capacity of 20-25-30 Tons (20000kg - 25000kg - 30000kg) with loading car option.

General Features

We produce hydraulic decoilers that has a coil inner pressure function working with hydraulic system. For loading the coils, coil car is used. Engine and speed control systems are standard options in coil cars.

  • Coil Carrying Capacity : 20-25-30 Ton (20000kg - 25000kg - 30000kg)
  • Coil Inner Diameter Clamping Capacity : 520mm - 620mm
  • Coil Outside Diameter Working Capacity : 1900mm
  • Working Width Capacity : 200mm - 1800mm
  • Coil Inner Pressure Function : Hydraulic Mandrel
  • Machine Working Movement : Left - Right
  • Inverter Motor with Speed Control

Photos

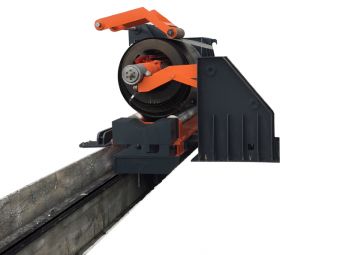

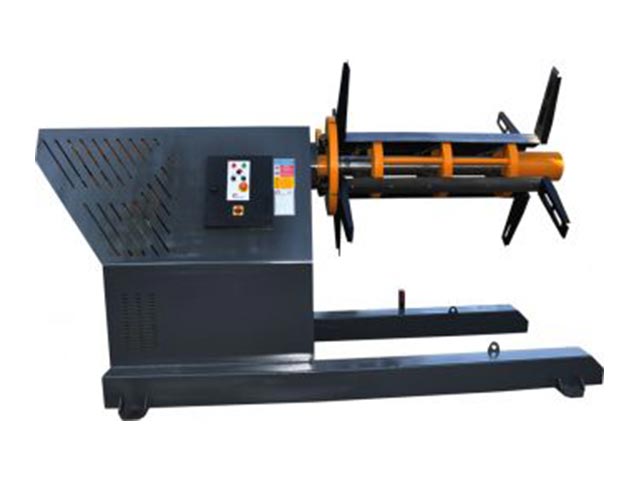

Photos of Hydraulic Coil Decoiler 20-25-30 Tons.

All pictures and photos shown are for illustration purpose only. Actual product may vary due to product enhancements.

Videos

Videos of Hydraulic Coil Decoiler 20-25-30 Tons.

Machine in the video is for visualization purposes only. Actual product may vary due to the product enhancements.

Technical Details Chart

* Some of the technical properties are subject to change during production without informing the customer.



MODEL Material
Width
(mm)
Coil Inner
Diameter
(mm) Min
Coil Inner
Diameter
(mm) Max
Coil Outside
Diameter (mm)
Coil Weight
(kg)
Motor Mandrel
Expansion
Snubber
Arm
RMH20000H 200 - 1600 520 620 1900 20000 + Hydraulic Standard
RMH25000H 300 - 1600 520 620 1900 25000 + Hydraulic Standard
RMH30000H 400 - 1800 520 620 1900 30000 + Hydraulic Standard
