2500Kg Mechanical Decoiler

Product Code(s) : RM2500F | RM2500M

Forming Line manufactures mechanical decoilers with a coil carrying and decoiling capacity of 2500Kg.

General Features

We produce mechanical decoilers with a sheet coil working capacity of 3 mm thickness, 500mm width and 2500kg weight. 2500kg Mechanical Decoiler has proximity sensor loop control and motor speed-control as a feature.

  • Coil Carrying Capacity : 2500kg
  • Coil Inner Diameter Clamping Capacity : 400-550 mm
  • Coil Outside Diameter Working Capacity : 1400mm
  • Working Width Capacity : 30-500mm
  • Coil Inner Pressure Function : Mandrel
  • Machine Working Movement : Left - Right
  • Inverter Motor with Speed Control

Photos

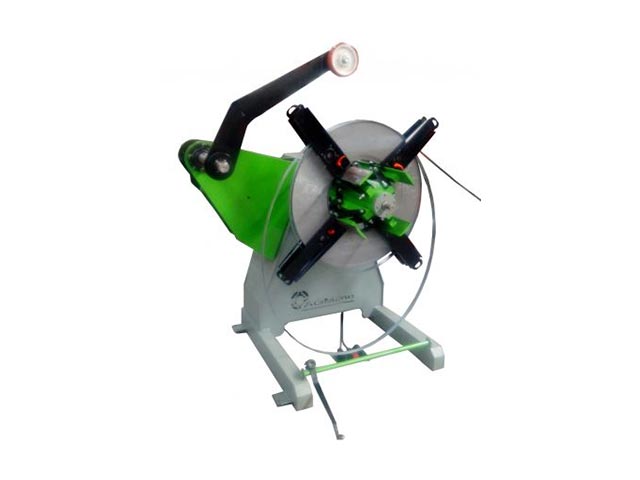

Photos of 2500kg Mechanical Decoiler.

All pictures and photos shown are for illustration purpose only. Actual product may vary due to product enhancements.

Videos

Videos of 2500kg Mechanical Decoiler.

Machine in the video is for visualization purposes only. Actual product may vary due to the product enhancements.

Technical Details Chart

* Some of the technical properties are subject to change during production without informing the customer.



MODEL Material
Width
(mm)
Coil Inner
Diameter
(mm) Min
Coil Inner
Diameter
(mm) Max
Coil Outside
Diameter (mm)
Coil Weight
(kg)
Motor Brake Snubber
Arm
RM2500F 30 - 500 400 550 1400 2500 - + Optional
RM2500M 30 - 500 400 550 1400 1500 + - Optional
