Coil Slitting Lines 1600mm

Forming Line manufactures coil slitting lines up to 1600 mm coil width and coil weight of 15.000 kg to 25.000 kg.

General Features

Depending on the coil width and thickness of the material, we mainly produce four different types of machinery for slitting operations which are up to 1600mm:

1.  Product Line:
0,3 - 4 mm Thickness x 1600 Width x 15 TON Weight

2.  Product Line:
0,5 - 5 mm Thickness x 1600 Width x 20 TON Weight

3.  Product Line:
0,8 - 6 mm Thickness x 1600 Width x 25 TON Weight

  • Maximum Weight : 15.000 kg
  • Loading Car : 15.000 kg
  • Strip Width : 20mm min. – 1600mm max.
  • Strip Thickness : 0,3 - 4 mm
  • Standart of Slit : 12 Slit
  • Inside Diameter : 490 / 620 mm
  • Working Width : 300 mm - 1600 mm
  • Slitted Coil OD : 1.600 mm
  • These specifications are for production lines of 0,3-4 mm T x 1600 W x 15 Tons. Features may vary on other production lines.

Photos

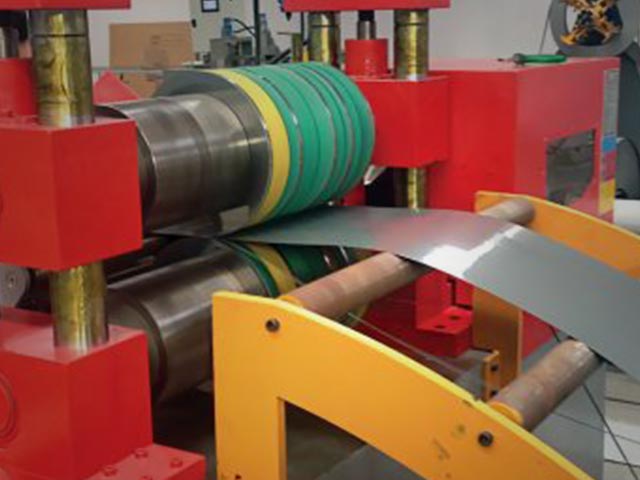

Photos of Coil Slitting Line up to 1600mm width of coil.

All pictures and photos shown are for illustration purpose only. Actual product may vary due to product enhancements.

Videos

Videos of Coil Slitting Line up to 1600mm width of coil.

Machine in the video is for visualization purposes only. Actual product may vary due to the product enhancements.
