4000Kg Mechanical Decoiler

Product Code(s) : RM4000KM

Forming Line manufactures mechanical decoilers with a coil carrying and decoiling capacity of 4000Kg.

General Features

We produce mechanical decoilers with a sheet coil working capacity of 3 mm thickness, 600mm-800mm-1000mm width and 4000kg weight. 4000kg Mechanical Decoiler has conical clamping, inner loop control, motor speed control, pneumatic proximity sensor and pneumatic roll upper pressure as a feature.

  • Coil Carrying Capacity : 4000kg
  • Coil Inner Diameter Clamping Capacity : 470-530 mm
  • Coil Outside Diameter Working Capacity : 1500mm
  • Width of Coil Drum Capacity : 70mm - 600mm - 800mm - 1000mm
  • Coil Inner Diameter Clamping Feature : Conical Mandrel
  • Coil Inner Pressure Function : Mandrel
  • Machine Working Movement : Left - Right
  • Inverter Motor with Speed Control
  • Roll Pressure : Pneumatic System

Photos

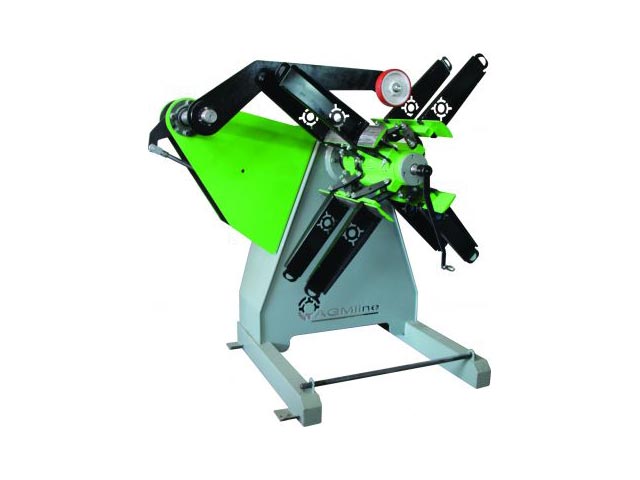

Photos of 4000kg Mechanical Decoiler.

All pictures and photos shown are for illustration purpose only. Actual product may vary due to product enhancements.

Videos

Videos of 4000kg Mechanical Decoiler.

Machine in the video is for visualization purposes only. Actual product may vary due to the product enhancements.

Technical Details Chart

* Some of the technical properties are subject to change during production without informing the customer.



MODEL Material
Width
(mm)
Coil Inner
Diameter
(mm) Min
Coil Inner
Diameter
(mm) Max
Coil Outside
Diameter (mm)
Coil Weight
(kg)
Motor Brake Snubber
Arm
RM4000KM 70 - 600 470 530 1500 4000 + - Optional
RM4000KM 70 - 800 470 530 1500 4000 + - Optional
RM4000KM 100 - 1000 470 530 1500 4000 + - Optional
