Straightener Servo Feeders with 9 Rolls

General Features

Forming Line's RMS Series Servo Feeders with Straightener are produced in 3 main groups and have working sizes between 30mm to 1600mm width and 0,3 mm to 6 mm thickness. Following are the properties of the first group (with 9 rolls) :

  • Working Width Capacity : 30mm - 1600mm
  • Sheet Thickness : 0.3mm - 4mm
  • Number of Mold Memory : 250 Molds
  • Number of Different Entries for Feeding Length : 50
  • Addition of External Output : 8
  • Colorful LCD Touch Screen
  • Mold Protection and Lubrication System

Photos

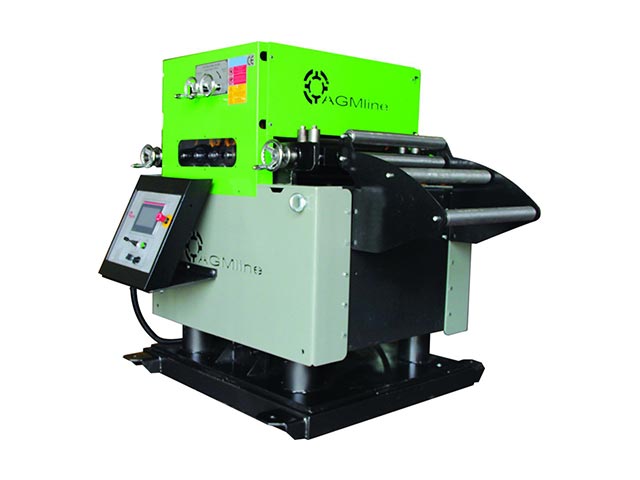

Photos of Straightener Servo Feeders with 9 Rolls

All pictures and photos shown are for illustration purpose only. Actual product may vary due to product enhancements.

Videos

Videos of Straightener Servo Feeders with 9 Rolls

Machine in the video is for visualization purposes only. Actual product may vary due to the product enhancements.

Technical Details Chart

* Some of the technical properties are subject to change during production without informing the customer.



MODEL Material
Width
(mm)
Material Thickness (mm)
Min
Material Thickness (mm)
Max
Continuous Speed
(m/min)
Feeder Roll Diameter (mm) Number of Feeder Pinch Rolls Number of Straightener Rolls Control System
RMS9-304 30 - 300 0.3 4 32 85 2 + 2 5 Servo
RMS9-404 40 - 400 0.3 4 32 85 2 + 2 5 Servo
RMS9-604 60 - 600 0.3 4 32 85 2 + 2 5 Servo
RMS9-804 70 - 800 0.3 4 32 85 2 + 2 5 Servo
RMS9-1004 150 - 1000 0.3 4 32 85 2 + 2 5 Servo
RMS9-1304 400 - 1300 0.3 4 32 85 2 + 2 5 Servo
RMS9-1604 500 - 1600 0.3 4 32 85 2 + 2 5 Servo
